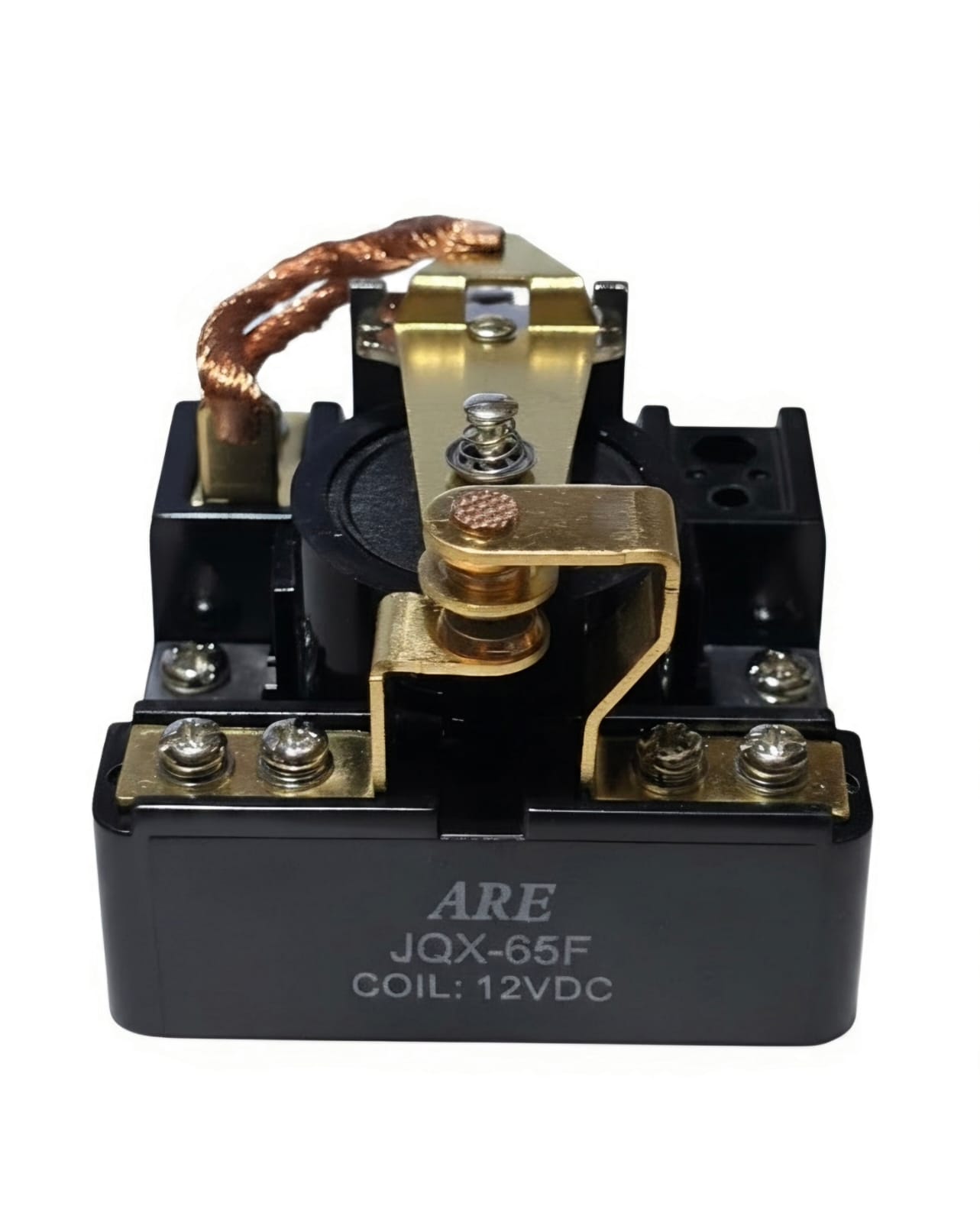

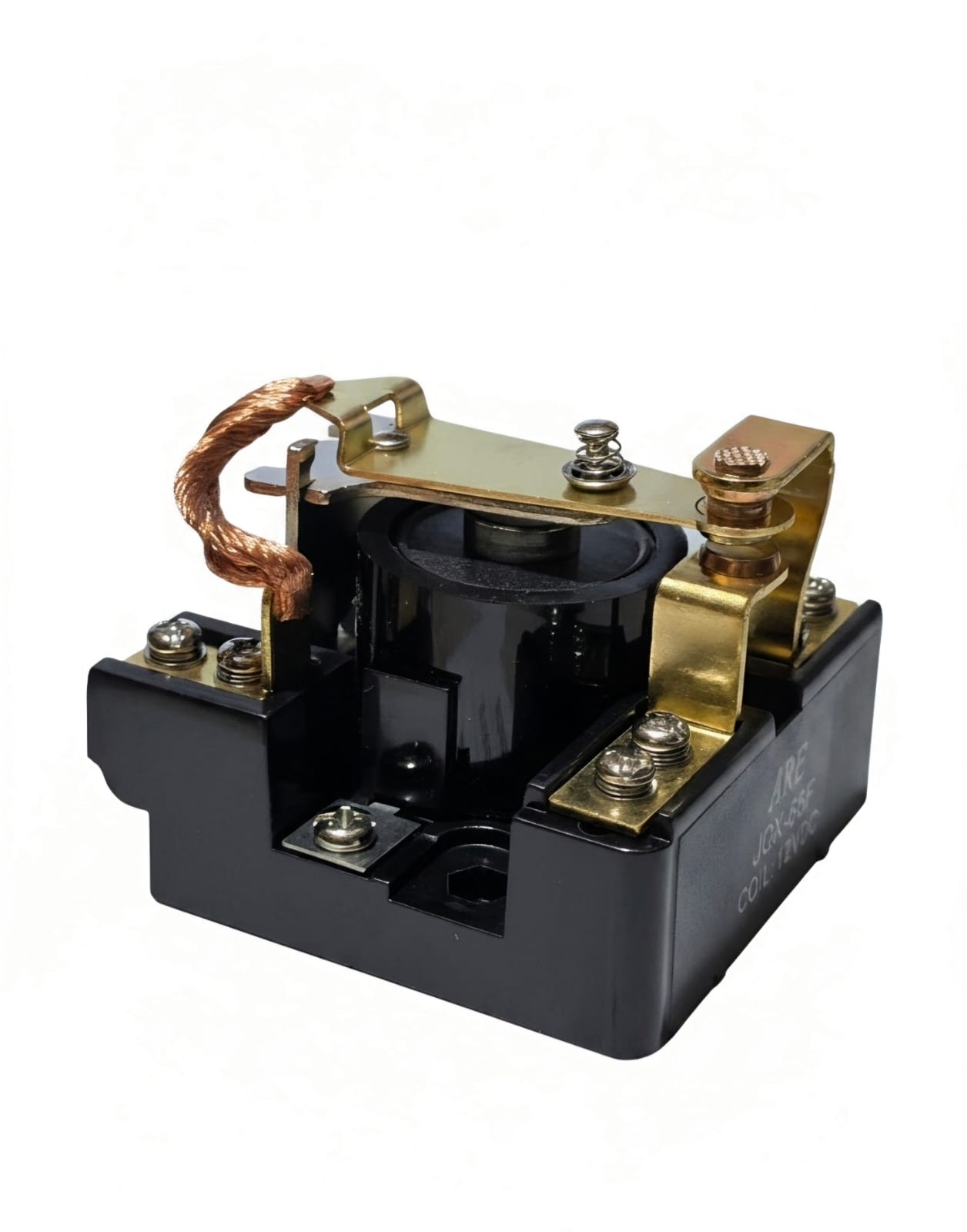

JQX-65F-1Z
Features & Compatibility
The JQX-65F is a heavy-duty, high-power electromagnetic power relay (often cross-referenced with the NNC71J series). It features a rated contact load capacity typically between 60A to 200A at 250VAC/28VDC and supports diverse coil voltages ranging from DC 6V–220V to AC 6V–380V, making it ideal for industrial control systems and electric welding machines
Technical Specifications
- Contact Load: Up to 60A–200A (depending on manufacturer configuration)
- Max Switching Voltage: 240VAC / 28VDC (or 250VAC variants)
- Contact Forms: 1Z (SPDT), 1H (SPST-NO), or 1D (SPST-NC)
- Coil Voltage Options: DC 6V to 220V, AC 6V to 380V
- Dimensions: Approximately 63.2 x 46 x 46 mm
- Contact Material: Silver alloy (AgSnO₂, AgCdO)
